41 11 733 Replacing Front Luggage Compartment Floor CROSSMEMBER (Luggage Compartment Floor Completely Removed)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required

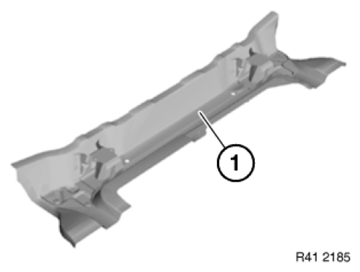

(1) Crossmember, luggage compartment floor, front

Courtesy of BMW OF NORTH AMERICA, INC.

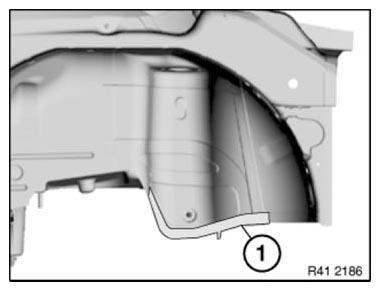

Open weld joints in area (1) on left and right sides of car.

Courtesy of BMW OF NORTH AMERICA, INC.

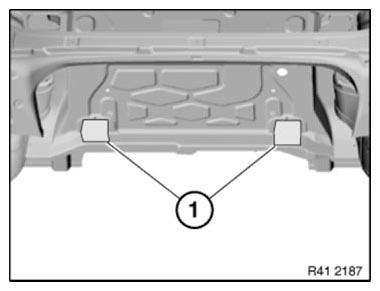

Open weld joints in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

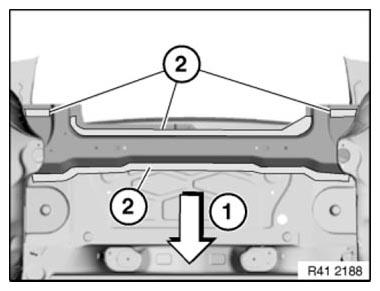

NOTE: View from vehicle floorpan

(1) = direction of travel

Open weld joints in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.
