41 11 141 Replacing Cover For Left Or Right Frame Side Member (Partial Replacement Between A- And B-Pillars)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.
Following new body parts are required:

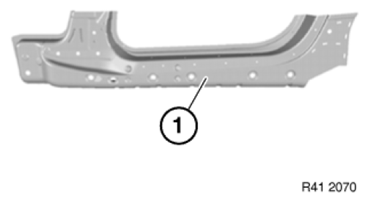

- (1) Outer rocker panel

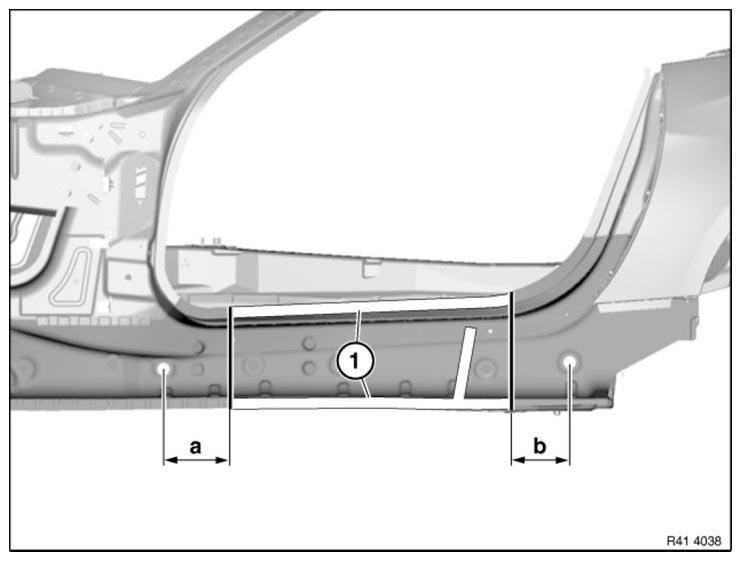

Mark severance cuts in accordance with specified measurements and cut.
Distance a = approx. 150 mm behind bore dia. 25 mm.
Distance b = approx. 130 mm before bore dia. 25 mm.
Release weld joints in areas (1) and remove outer rocker panel.
Installation:
Weld in REINFORCING PANELS at all severance cuts.
