41 11 048 Replacing Front Left Engine Support (Without Wheel Arch) (Partial Replacement Before Bulkhead)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

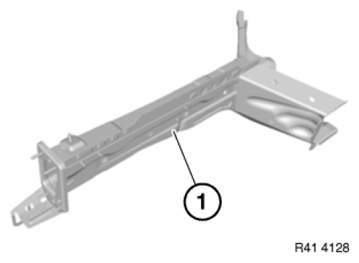

- (1) Engine support, front

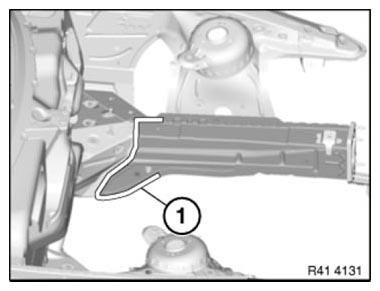

Open weld joints in area (1).

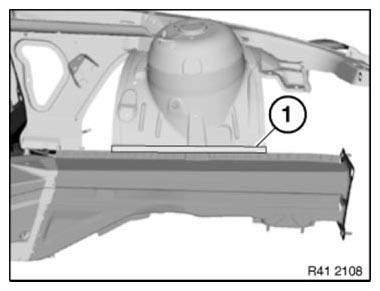

Open weld joints in areas (1).

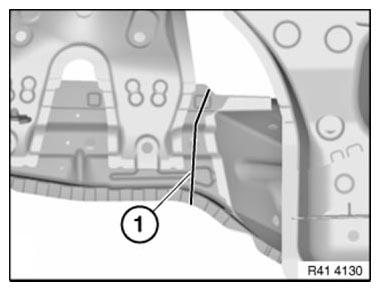

Mark severance cut (1) and cut.
IMPORTANT:
Cut outer metal sheet only.
Installation information:
- WELD IN REINFORCEMENT PLATE AT at severance cut.

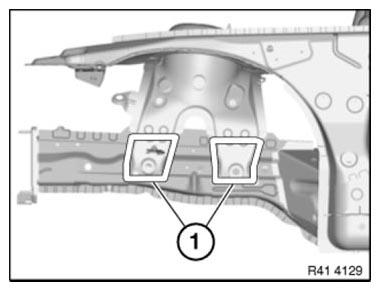

Open weld joints in area (1).
Remove engine support.
Installation:
Adjust new part to fit with straightening attachment or universal mount.
