41 11 028 Replacing Left Engine Carrier (Partial Replacement Before Front Axle)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

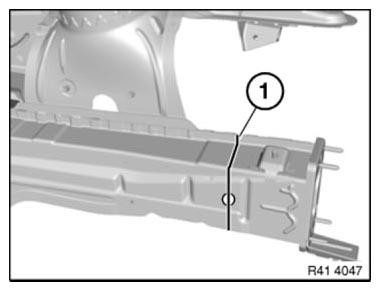

- (1) Partial section, engine carrier

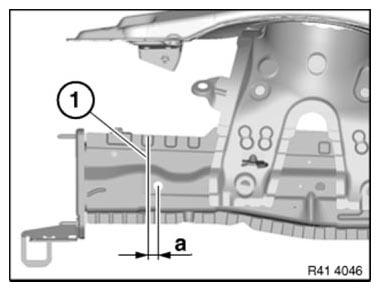

Mark severance cut (1) in accordance with measurement a and cut.
IMPORTANT:
Cut outer metal sheet only.
Measurement a = approx. 15 mm in front of bore dia. 20 mm.
Mark severance cut (1) through 15 mm dia. bore and cut.

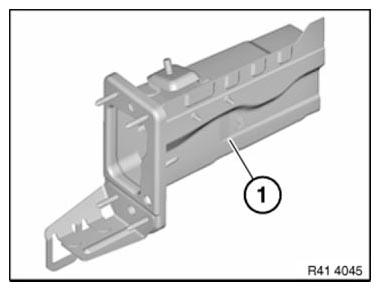

Preparation of new part:
Mark severance cuts in accordance with vehicle and cut.
Installation:
Adjust new part to fit with straightening attachment and universal mount.
Weld in REINFORCEMENT PLATES at severance cuts.
