41 11 015 Replacing Front Left Or Right Engine Bracket With Wheel Arch

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

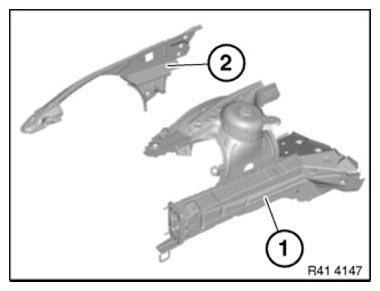

(2) Wheel arch, front
(1) Carrier support, wheel arch

Courtesy of BMW OF NORTH AMERICA, INC.

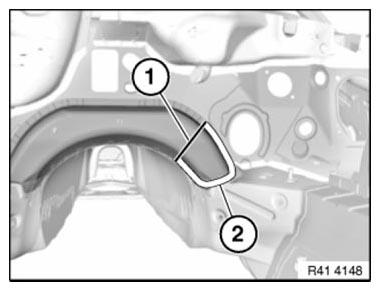

Mark severance cut (1) and cut.

IMPORTANT: Cut outer metal sheet only.

Open weld joints in area (2).

Installation information:

Sheet section is needed again to seal bulkhead carrier support.
WELD IN REINFORCEMENT PLATE at severance cut.

Courtesy of BMW OF NORTH AMERICA, INC.

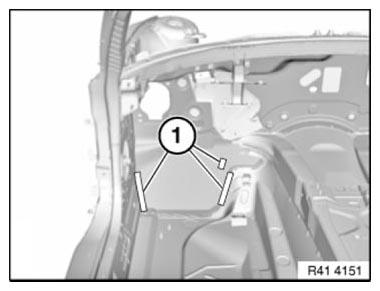

Open weld joints in areas (1).

Open spot-weld bonded joints in area (2)

Courtesy of BMW OF NORTH AMERICA, INC.

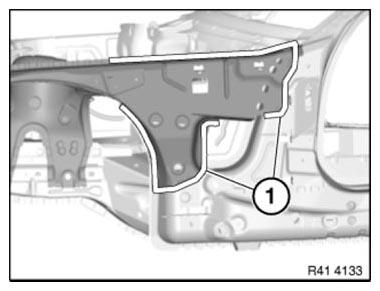

Open weld joints in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

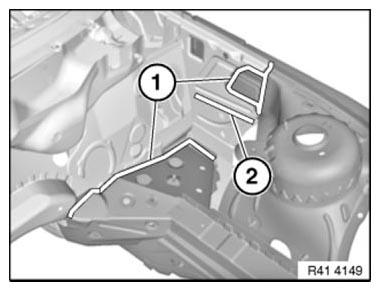

Open weld joints in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

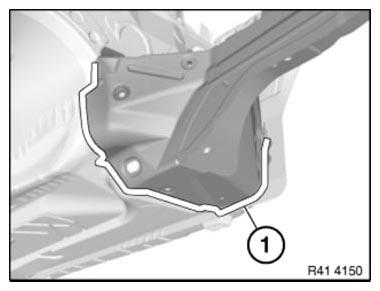

Open weld joints in areas (1).

Remove wheel arch with carrier support.

Installation:

Adjust new part to fit with straightening attachment or universal mount.
