41 00 510 Checking Rear Body Structure

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REINFORCEMENT PLATE FROM REAR AXLE

Structural damage can be identified by measuring with a beam trammel.

Here, symmetrically arranged points on the vehicle are measured in diagonal sequence.

If the two measured values are identical, there is no damage to the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

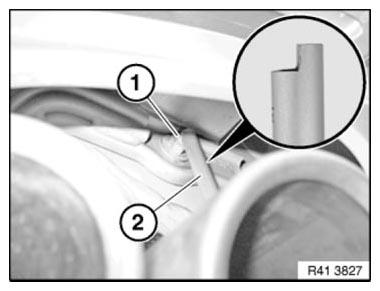

In rear area use adapter (2) on threaded bolt of impact plate (1).

NOTE: If necessary, make recess in adapter yourselves.

Courtesy of BMW OF NORTH AMERICA, INC.

Use conical adapter (1) at attachment point of reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.
