51 71 390 Removing and installing/replacing reinforcement plate on rear axle

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Vehicles must not be driven without reinforcement plates.
Driving without the reinforcement plate may damage the vehicle body.
Screws of reinforcement plate must be tightened to torque and then tightened down with special tool 00 9 120 .

Release screws (1) and remove heat shield (2).

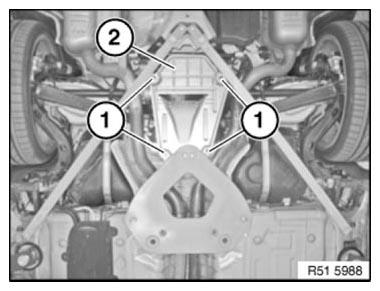

Fig 1: Identifying Heat Shield With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 71 24AZ .

Unscrew nuts (2).

Tightening torque 51 71 25AZ .

Unscrew nuts (3).

Tightening torque 51 71 26AZ .

Remove thrust panel (reinforcement plate) (4).

Installation:

Replace screw (1).

Tighten down screws (1) to specified torque and then to angle of rotation.

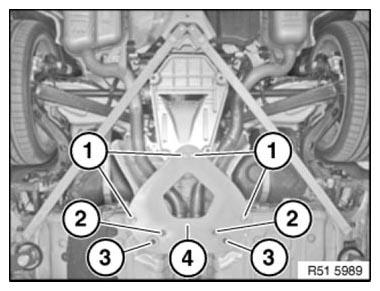

Fig 2: Identifying Thrust Panel (Reinforcement Plate) With Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
