67 11 555 Removing and installing/replacing servodrive for tank filler flap

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER HOUSING

Release screws (1) on drive holder (2).

Installation:

Make sure servodrive for fuel filler flap is correctly adjusted. It must be possible to lock or unlock the tank filler flap completely.

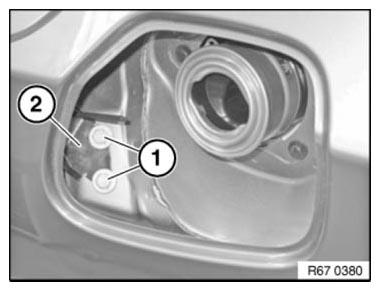

Fig 1: Identifying Screws On Drive Holder

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Locking pin (2) must not be damaged.

Detach emergency actuation pull strap (1) on servodrive for tank filler flap.

Unlock plug connection (3) and disconnect.

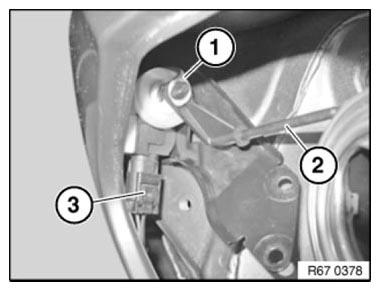

Fig 2: Identifying Emergency Actuation Pull Strap With Locking Pin And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Feed emergency actuation pull strap (1) out of lug (2).

Feed out servodrive (3).

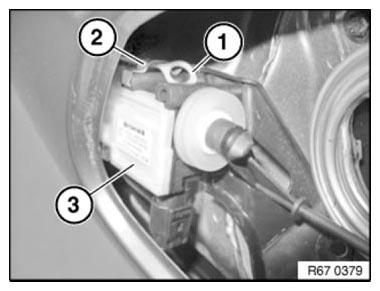

Fig 3: Identifying Servodrive With Emergency Actuation Pull Strap

Courtesy of BMW OF NORTH AMERICA, INC.
