41 63 002 Replacing Cover Bowl

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FLAP FOR FUEL FILLER NECK (1) .

Turn cover (1) through approx. 90° and lever out in direction of arrow.

G06910705

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Press retaining strap (1) inwards and remove.

Remove fuel tank cap.

G06910706

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear cover housing in direction of arrow downwards a little and then pull outwards.

In so doing, lift seal (1) over fuel filler neck.

If necessary, apply suitable antiseize agent between seal and fuel filler neck.

G06910707

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) on left/right of cover (2) must not be damaged.

G04726998

Courtesy of BMW OF NORTH AMERICA, INC.

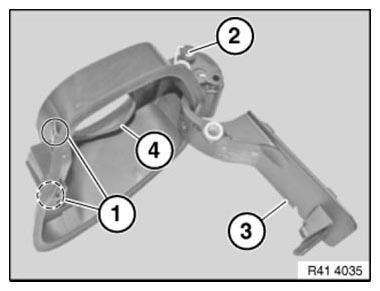

Installation:

Following parts of cover housing not be damaged or missing:

Catches, top/bottom
Spring
Catch, fuel tank flap
Seal

If necessary, apply suitable antiseize agent to seal and fuel filler neck.

G06910709

Courtesy of BMW OF NORTH AMERICA, INC.
