00...... Raising vehicle with trolley jack
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe the following trolley-jack-related instructions:
- Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
- Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
- Check the rubber plate on the trolley jack prior to each use, replacing if necessary.
WARNING:

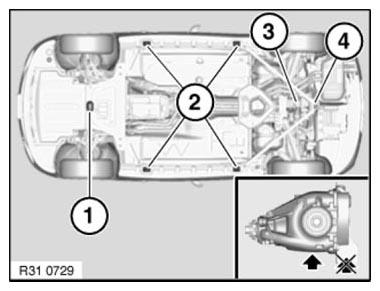

The vehicle may be raised with a trolley jack only at the following jacking points!
- Car jacking point
- Side car jacking points
- Rear differential (REMOVE HEAT SHIELD
)
Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!
- Bolting point for rear axle tension struts
