51 45 266 Removing and installing/replacing right instrument panel trim

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to shaking/shocks.

Necessary preliminary tasks

(Only with Radio Business or Radio Professional equipment specification)

Remove RADIO RECEIVER

NOTE: Carry out following work step only in case of optional equipment with Car Information Computer (CIC)

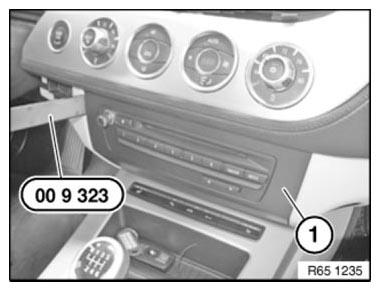

Unclip trim (1) with special tool 00 9 323.

Fig 1: Removing Trim Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For clearer illustration, shown with front trim on CIC removed.

Release screws (1).

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Open glovebox cover (1).

Release screws (2) at marked points in upper area of glovebox.

Fig 3: Identifying Glovebox Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out insertion slot (1) with special tool 00 9 323 and remove.

Release screw behind.

Carefully lever out instrument panel trim (2) towards front.

Unlock associated plug connections and disconnect.

Remove instrument panel pipe trim (2).

Fig 4: Removing Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove CONTROL PANEL FOR HEATING - A/C SYSTEM
Remove START/STOP SWITCH
