65 11 080 Removing and installing/replacing radio

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD

Pry out trim (1) with special tool 00 9 323 and remove.

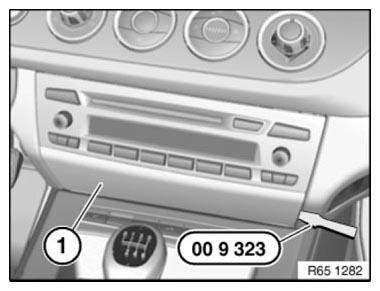

Fig 1: Prying Out Trim Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull out radio (2) towards front.

Unlock associated plug connections and disconnect.

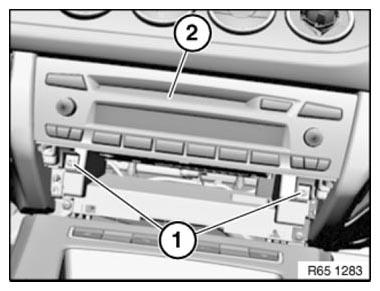

Fig 2: Identifying Radio With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

US version only:

If there is a violet aerial connection (1) as well as the black aerial connection (2), additional tasks are required when replacing the radio!

Read and observe document REPLACING SATELLITE TUNER .

Fig 3: Identifying Violet Aerial Connection And Black Aerial Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out vehicle programming/encoding.
