51 45 261 Removing and installing/replacing left instrument panel trim

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

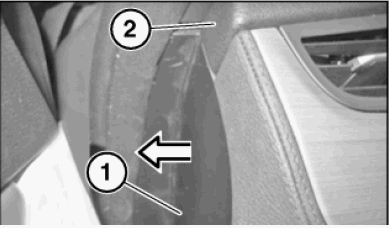

Unclip instrument panel cover (1) in direction of arrow.

Fig 1: Removing Instrument Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

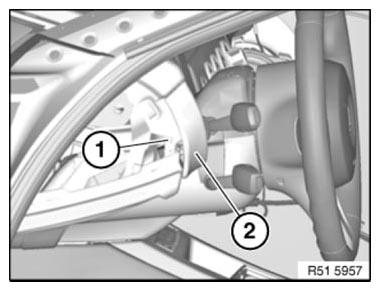

Release screw (1) on trim (2).

Fig 2: Identifying Screw On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Tape off working area. Risk of damage!

Painted trims are particularly sensitive to damage.

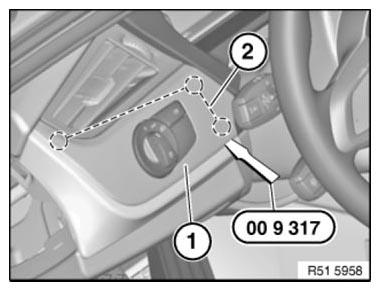

Lever out trim (1) with special tool 00 9 317 at mounting points (2) and remove.

Fig 3: Removing Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection behind and disconnect.

Installation:

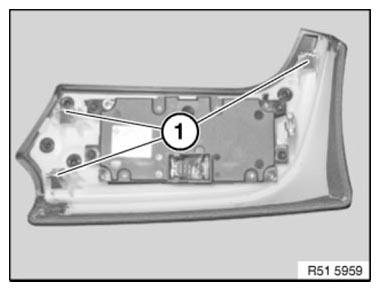

If necessary, replace retainers (1).

Fig 4: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove LIGHT SWITCH UNIT .
