61 31 037 Removing and installing/replacing light control unit

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FINISHER ON LEFT INSTRUMENT PANEL TRIM

Release screws (1).

Remove light switch unit (2) from trim (3).

Installation:

Make sure light switch unit (2) is correctly seated on trim (3).

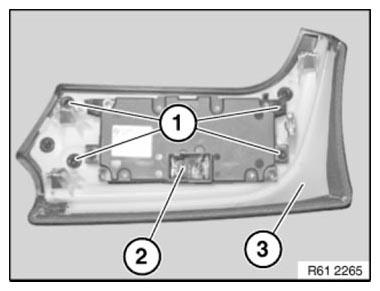

Fig 1: Identifying Light Switch Unit With Screws On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.
