51 44 150 Removing and installing/replacing front roofliner trim
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Open convertible top
- Remove SUN VISORS

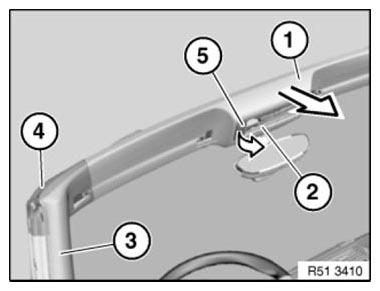

Pull back trim (1) in direction of arrow.
Disconnect plug connection for ceiling light (5).
Remove trim for roofliner (1).
Installation:
Make sure seal (4) is correctly seated on roofliner trim (1).
Make sure trim (1) is correctly seated on panels (3) on left and right.
Replacement
NOTE:
- Remove CEILING LIGHT
