63 31 000 Removing and installing/replacing complete ceiling light
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow instructions for handling light bulbs (interior lights).
NOTE:
Secure complete ceiling light against falling out.

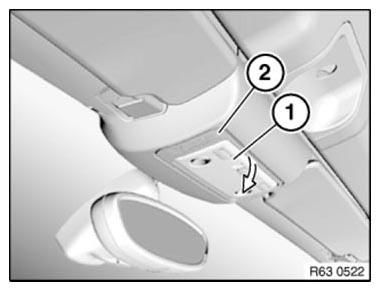

Unclip complete ceiling light (1) with plastic wedge in direction of arrow from cowl panel insert (2).
Unlock associated plug connections and disconnect.
Remove complete ceiling light (1).
Replacement:
If necessary, remove BULBS .
