51 43 201 Removing and installing/replacing trim panel for left or right roof pillar
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove FRONT ROOFLINER TRIM

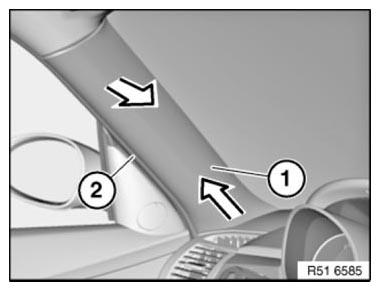

Unclip trim (1) at top and remove from instrument panel.
Installation:
Make sure panel (1) is correctly seated on instrument panel.
Make sure mucket (2) is correctly seated on panel (1).
