51 43 125 Removing and installing/replacing rear bottom left or right side trim panel

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

Necessary preliminary tasks

Remove REAR SIDE TRIM PANEL
Remove FRONT DOOR SILL COVER STRIP

Release screw (1).

Partially detach door seal (2).

Carefully pull out trim panel (3) and remove.

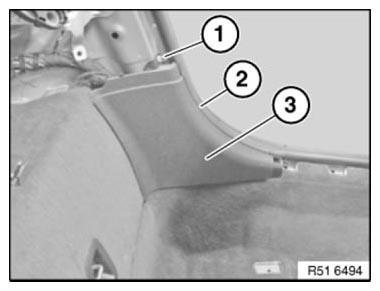

Fig 1: Identifying Door Seal, Trim Panel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, reattach clip (1) prior to installation.

Clip (1) and retaining lugs (2) must not be damaged.

If necessary, replace side trim panel.

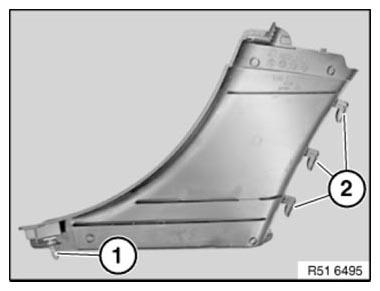

Fig 2: Identifying Clip And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
