51 43... Removing and installing/replacing rear top left or right side trim panel

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

Unclip side trim panel (1) towards top.

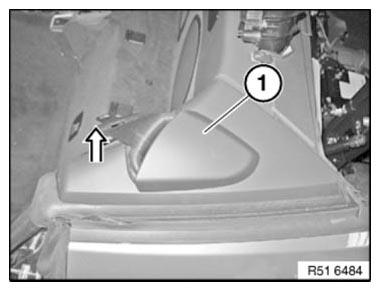

Fig 1: Removing Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (2) is correctly seated in relation to side trim panel (1).

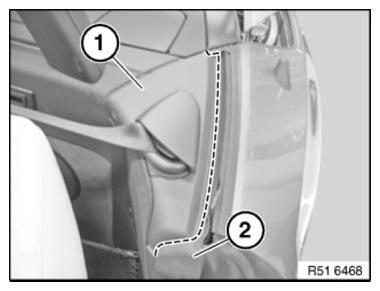

Fig 2: Identifying Side Trim Panel With Seal

Courtesy of BMW OF NORTH AMERICA, INC.
