64 11 909 Removing and installing/replacing footwell temperature sensor

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM LEFT

Remove footwell duct (1).

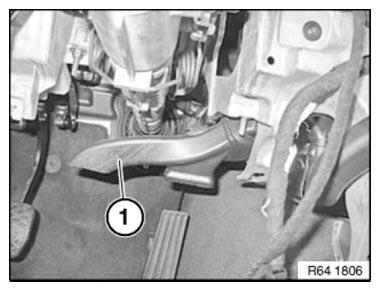

Fig 1: Identifying Footwell Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Turn temperature sensor (2) at plug socket as far as it will go.

Feed temperature sensor (2) out of footwell duct.

Installation:

Make sure temperature sensor (2) is correctly engaged in footwell duct.

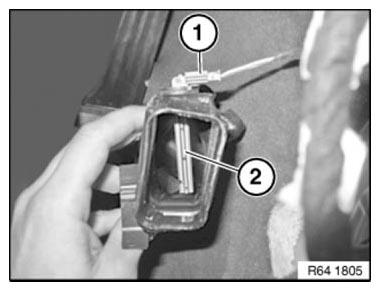

Fig 2: Identifying Temperature Sensor With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
