64 11 875 Removing and installing/replacing actuator drive for defrosting flap (automatic A/C)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove HEATER/AIR CONDITIONER FAN

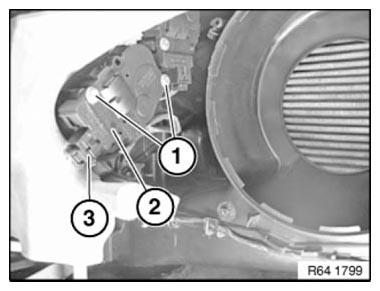

Release screws (1).
Pull out actuator drive for defroster flap (2).
Unlock plug connection (3) and disconnect.
Replacement:
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Re-address flap motors
