64 11 213 Removing and installing/replacing heater/air conditioner fan

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING

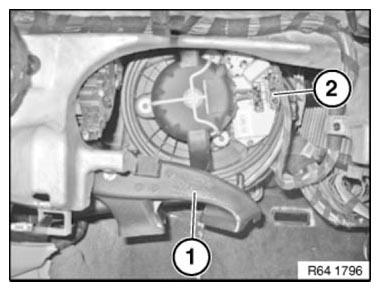

Remove air duct (1).

Unfasten plug connection (2) and disconnect.

Fig 1: Identifying Air Duct With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

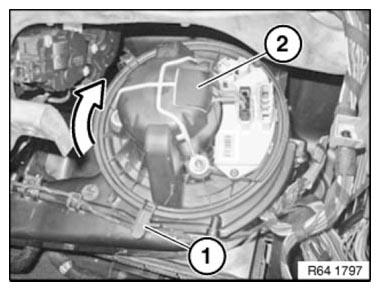

Raise lug (1).

Release fan motor (2) in direction of arrow.

Fig 2: Removing Fan Motor

Courtesy of BMW OF NORTH AMERICA, INC.

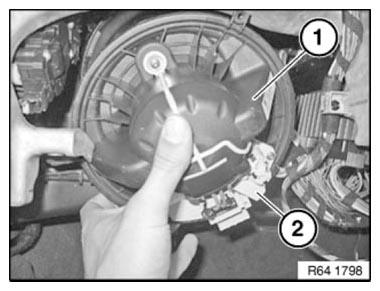

Pull fan motor (1) forwards a little and then turn until controller (2) points downwards.

Feed out fan motor (2).

Fig 3: Removing Fan Motor

Courtesy of BMW OF NORTH AMERICA, INC.
