64 11 871 Removing and installing/replacing servodrive for blending flap (right, automatic air conditioning)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEATER/AIR CONDITIONER FAN

Release screws (1).

Pull out servodrive for blending flap (2).

Unlock plug connection (3) and disconnect.

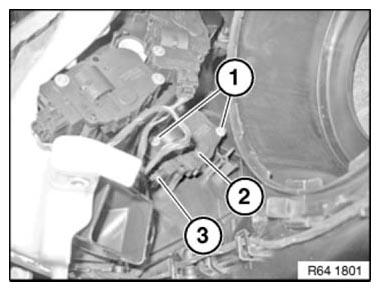

Fig 1: Identifying Servodrive For Blending Flap With Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Readdress flap motors
