64 11 869 Removing and installing/replacing actuator drive for ventilation/stratification flap (automatic air conditioning)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove INSTRUMENT PANEL TRIM AT BOTTOM LEFT

Release screws (1).

Pull out actuator drive for defroster flap (2).

Unlock plug connection (3) and disconnect.

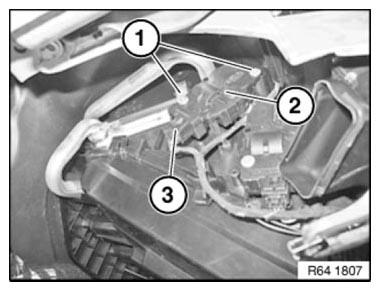

Fig 1: Identifying Actuator Drive For Defroster With Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Re-address flap motors
