33 55 040 Replacing anti-roll bar links for stabilizer bar

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove ANTI-ROLL BAR

Clamp stabilizer link in vice with protective vice jaws.

Pull off stabilizer with rotational movements.

If the rubber mount remains on the stabilizer, it must be cut through with the blade and pulled off.

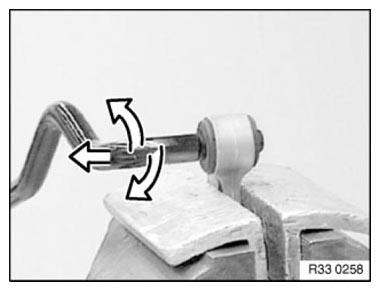

Fig 1: Pulling Off Stabilizer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamp new stabilizer link in vice with protective vice jaws.

Moisten end of stabilizer and inside of rubber mount with Circolight mounting agent.

Press stabilizer as far as possible into stabilizer link with rotary motions.

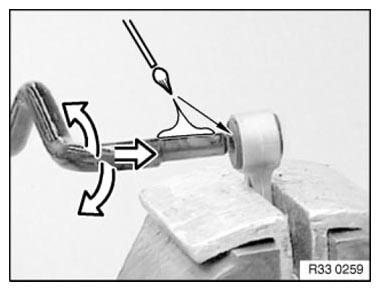

Fig 2: Pressing Stabilizer Into Stabilizer Link

Courtesy of BMW OF NORTH AMERICA, INC.
