33 41... Detaching inner wheel bearing race from drive flange

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove drive flange . See 3341005 REPLACING LEFT DRIVE FLANGE ON REAR AXLE SHAFT or 3341007 REPLACING RIGHT DRIVE FLANGE ON REAR AXLE SHAFT

NOTE: Detach wheel bearing inner race with special tool 33 4 400 through groove in wheel bearing inner race.

Position special tool 33 1 307 on drive flange.

Select one of the following special tools using the wheel bearing inner race and insert into special tool 33 4 401.

33 4 405 for dia. 45 - 51 mm

33 4 406 for dia. 50 - 55 mm

33 4 407 for dia. 55 - 61 mm

Screw in special tool 33 4 402 until tapered attachment of spindle comes into contact with special tool 33 4 401.

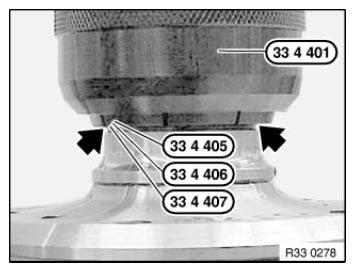

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 33 4 401 with corresponding insert on groove of wheel bearing inner race.

Compress special tool 33 4 401 with wrenches 33 4 403 and 33 4 404 until special tool can still just be turned in groove.

Detach wheel bearing inner race by turning special tool 33 4 402.

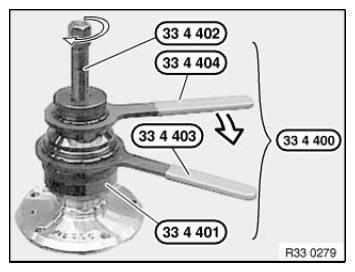

Fig 2: Removing Wheel Bearing Inner Ring Using Special Tool (33 4 402)

Courtesy of BMW OF NORTH AMERICA, INC.
