51 71 482 Removing and installing/replacing left or right tension strut
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Vehicles must not be driven without tension struts.
Driving without tension struts may damage the vehicle body.
Tension strut bolts must be tightened to torque and then tightened down with special tool 00 9 120.
Driving without tension struts may damage the vehicle body.
Tension strut bolts must be tightened to torque and then tightened down with special tool 00 9 120.

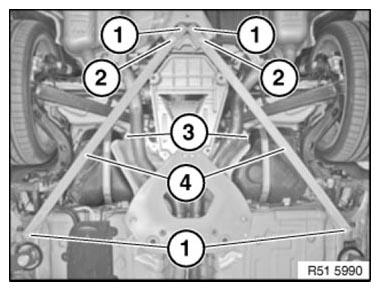

Tension strut, left and right
Release bolts (1, 2) and nuts (3) and remove tension strut (4).
Installation:
Replace bolts (1 and 2).
- Bolt (1) M10x50
- Bolt (2) M8x35
- Nut (3)
Tightening torque 51 71 29AZ .
Tightening torque 51 71 30AZ .
Tightening torque 51 71 31AZ .
