33 17... Replacing rubber mount for rear differential mounting at rear

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

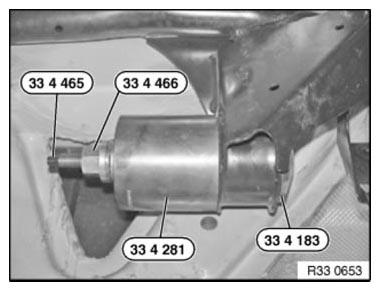

Pull out rubber mount with special tools 33 4 465, 33 4 466, 33 4 281 and 33 4 183.

Fig 1: Pulling Out Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

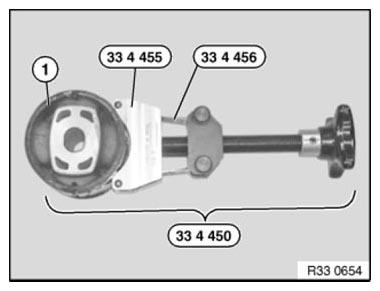

Attach support 33 4 455 and strap retainer 33 4 456 to special tool 33 4 450.

Install rubber mount (1) in special tool 33 4 450 and pull together.

Fig 2: Installing Rubber Mount On Special Tool (33 4 450)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat bearing bushing in rear axle carrier and new rubber mount with Circo Light.

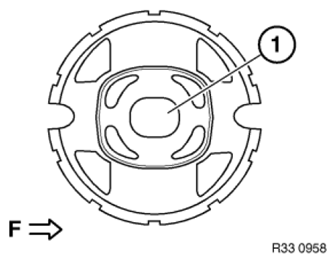

Align rubber mount by way of elongated hole (1) to vehicle longitudinal direction (F).

Fig 3: Identifying Rubber Mount Aligning Hole

Courtesy of BMW OF NORTH AMERICA, INC.

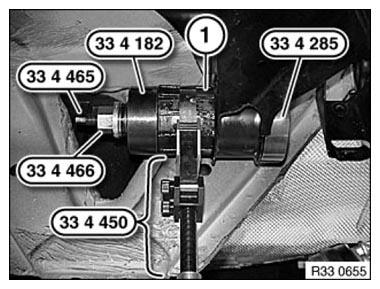

Install rubber mount (1) with special tools 33 4 465, 33 4 466, 33 4 182 and 33 4 285 until special tool 33 4 450 rests on rear axle carrier.

Release special tool 33 4 450 and remove.

Install rubber mount (1) as far as it will go.

Fig 4: Installing Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
