33 11... Replacing rear cover gasket on rear differential (215L)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
To avoid leaks from the rear differential cover, do not use a paper gasket in cars with liquid gaskets!
To prevent the differential oil from foaming over, make sure that no remnants of the liquid gasket are pressed into the rear differential housing.
To prevent the differential oil from foaming over, make sure that no remnants of the liquid gasket are pressed into the rear differential housing.

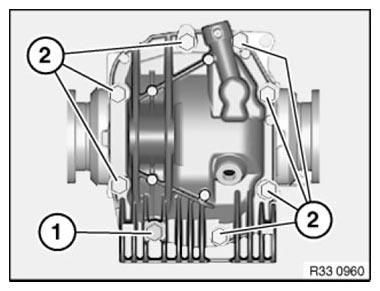

Release screw (1).
Tightening torque (M10x25) 33 11 1AZ .
Remove cover.
If necessary, remove remnants of liquid gasket with scraper.
Clean sealing face on cover and rear differential.
Installation:
If a paper gasket was fitted, a paper or liquid gasket can be used.
The liquid gasket can be found in Main Group 33 in the Electronic Parts Catalogue.
