11 22 500 Removing and installing/replacing flywheel (N54, N54T)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TWIN-CLUTCH GEARBOX (GS7D36SG) N54
Remove CLUTCH

Enlarge special tool 11 9 260 with an elongated hole.

Enlarge elongated hole on special tool 11 9 260 to 8 mm .

Fig 1: Identifying Special Tool 11 9 260 With Elongated Hole

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with manual gearboxes

Secure flywheel with special tool 11 9 260 .

Release flywheel bolts with special tool 11 4 180 /

Tightening torque 11 22 2AZ .

Installation note:

The flywheel is secured with a dowel pin.

Fit new flywheel screws

Fig 2: Removing Flywheel Bolts Using Special Tool 11 4 180

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with automatic transmissions

Secure flywheel with special tool 11 9 260 .

Release flywheel screws with a suitable tool (1).

Tightening torque 11 22 1AZ .

Installation note:

The flywheel is secured with a dowel pin.

Fit new flywheel screws

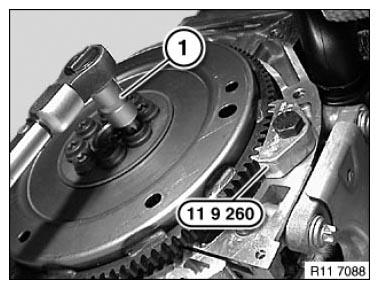

Fig 3: Removing Flywheel Screws Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
