11 00 670 Securing engine in installation position (N54, N54T)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!

Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

Necessary preliminary tasks:

Secure ENGINE HOOD/BONNET
Remove rear AIR DUCT

Assemble transverse member 00 6 000 with special tools 00 6 030.

Fig 1: Assembling Transverse Member 00 6 000 Using Special Tools 00 6 030

G06904092

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in towing hook (1).

Fig 2: Identifying Towing Hook

G06904093

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.

Always make sure there is sufficient clearance between the engine (or its attachment parts) and the body.

The support points on the left side are shown.

IMPORTANT: Risk of damage!

Position transverse member 00 6 030 with a 2nd person help on designated areas (1, 2) of side panel.

Fig 3: Positioning Transverse Member 00 6 030 On Side Panel

G06904094

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 0 020 to spindle 00 6 002.

Fit suitable chains to special tool 11 0 020 and attach to engine towing hook or lifting eye.

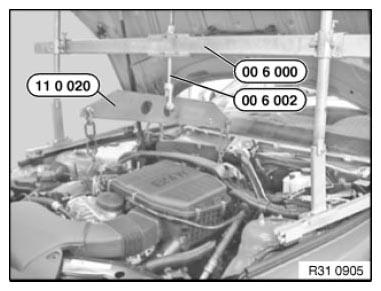

Fig 4: Connecting Special Tool 110 020 To Engine Towing Hook Or Lifting Eye

G06904095

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury!

Tighten down all adjusting screws and nuts on transverse member 00 6 000.

Fig 5: Identifying Transverse Member On Special Tool 00 6 030

G06904092

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Raise engine approx. 10 mm with transverse member.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 6: Identifying Engine Mount Nut

G04739616

Courtesy of BMW OF NORTH AMERICA, INC.
