11 00 039 Checking compression in all cylinders (N43/N53/N54)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory of DME control unit
Check stored faults
Rectify faults
Delete fault memory

IMPORTANT: High tension - mortal danger!

Interrupt power supply to ignition coils.

Read and comply with notes on compression pressure check.

Necessary preliminary tasks

Remove spark plugs

Unscrew tip (1) from special tool 11 0 222.

IMPORTANT: Then check the Schrader valve that is now visible for secure seating.

Fig 1: Removing Tip From Special Tool 11 0 222

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731.

Fig 2: Identifying Special Tool 11 0 222, 11 8 732 And 11 8 731

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 into special tool 11 8 731 to 10 Nm.

IMPORTANT: Oil thread on special tool 11 8 731.

Fig 3: Inserting Special Tool 11 0 222 Into Special Tool 11 8 731

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 by hand into spark plug thread and connect special tool 11 0 224.

Use adapter (1) if the compression pressure is being checked with the BMW diagnosis system.

Depress accelerator pedal and actuate starter until compression pressure stops rising.

NOMINAL VALUES , compression pressure

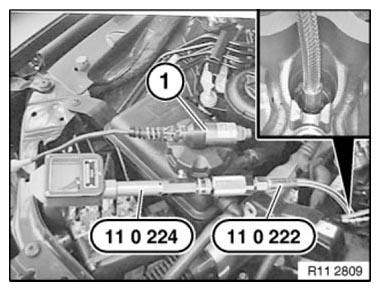

Fig 4: Installing Special Tool 11 0 222 Into Spark Plug Thread

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine

Delete fault memory.
