52 24 037 Removing and installing/replacing seat frame

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR SEAT

Optional equipment with seat heating only:

Unfasten plug connection (1) and disconnect.

Feed wiring harness out of plastic hooks.

Fig 1: Locating Wiring Harness Plastic Hooks

G06895722

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cover welt in marked area from plastic hooks.

Fig 2: Disengaging Cover Welt From Plastic Hooks

G06895723

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen retainers (1).

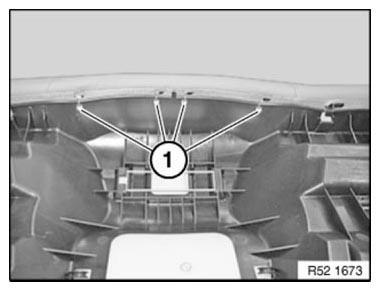

Fig 3: Identifying Retainers

G06895724

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen retainers (1).

Disengage cover tabs from plastic hooks.

Remove padding with seat cover from seat frame.

Replacement only:

If necessary, remove CONTROL UNIT for seat heating.

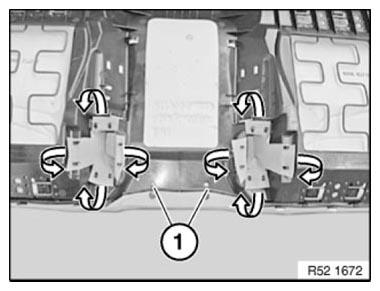

Fig 4: Disengaging Cover Tabs From Plastic Hooks

G06895725

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove all remnants of retainers.

Insert new retainers with special tool 52 0 050 .
