52 24 005 Removing and installing/replacing rear seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left and right towards top.

Installation note:

Feed seat belt buckles (1) into recesses in rear seat.

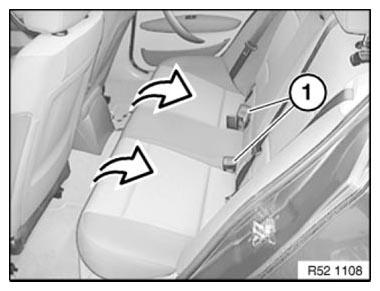

Fig 1: Feeding Seat Belt Buckles Into Recesses In Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Optional equipment with seat heating only:

Unlock and disconnect plug connections (1) for backrest heating.

Unlock plug connections (2) and disconnect.

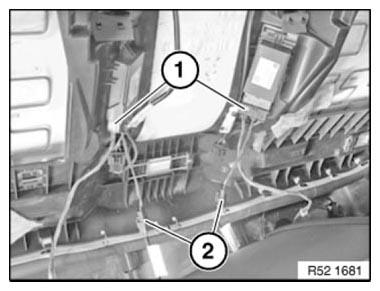

Fig 2: Identifying Backrest Heating Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
