52 24 010 Removing and installing/replacing backrest for rear seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR SEAT
Remove BOTH REAR HEAD RESTRAINTS

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 52 24 1AZ .

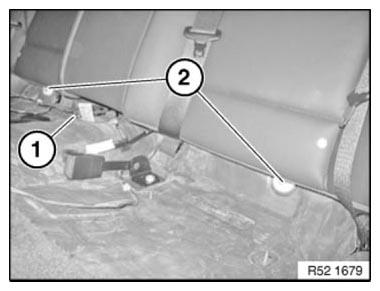

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Open center armrest.

Detach cover from adhesive band.

Release screws (1).

Tightening torque 52 24 1AZ .

Remove backrest.

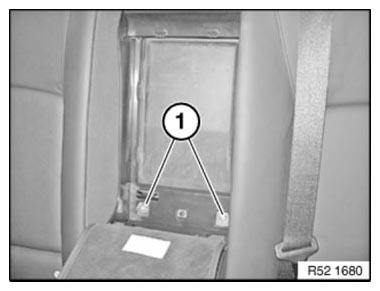

Fig 2: Identifying Backrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.
