51 46 018 Removing and installing/replacing trim panel for storage shelf with roller sunblind: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove backrest. See REMOVING BACKREST FOR REAR SEAT (ELECTRIC) or REMOVING BACKREST REAR SEAT (NON-ELECTRIC) .
- Only with optional equipment Comfort seat:
- Remove HEAD RESTRAINTS
- Remove ARMREST
- With rear air conditioning optional equipment only:
- Remove all luggage compartment trim panels. See REMOVING ALL LUGGAGE COMPARTMENT TRIMS (WITHOUT SKI BAG) or REMOVING ALL LUGGAGE COMPARTMENT TRIMS (WITH SKI BAG) .
- Remove TRIM FOR ROOF PILLAR AT REAR
- Remove BELT FEED TRIM on left and right

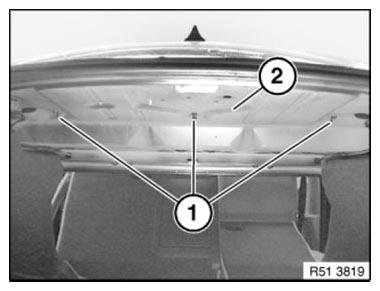

Release screws in luggage compartment.
Installation note:
Tightening torque 51 46 2AZ .

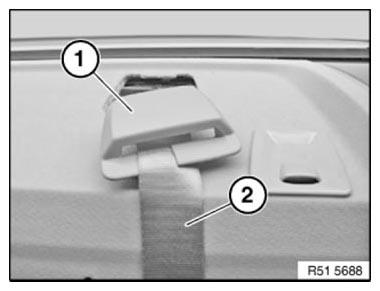

Lever out center seat belt finisher strip (1) with plastic wedge and feed out seat belt strap (2).
Version with decorative strip only:

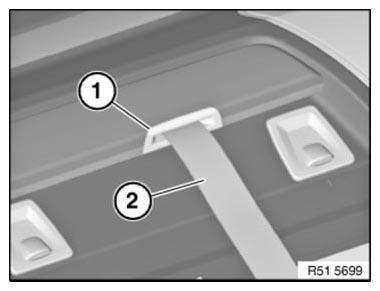

Unclip center seat belt finisher strip (1) from decorative trim and feed out seat belt strap (2).

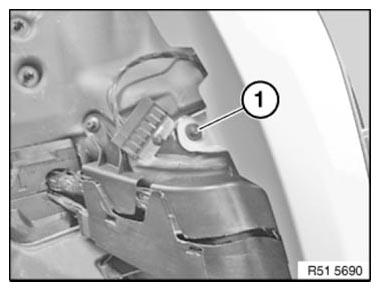

- Release plastic nut (1) on C-pillar trim panel.

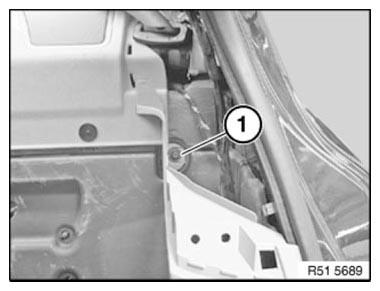

- Release plastic nut (1) on C-pillar trim panel.
- Disengage guide lug of C-pillar trim panel at top from storage shelf.

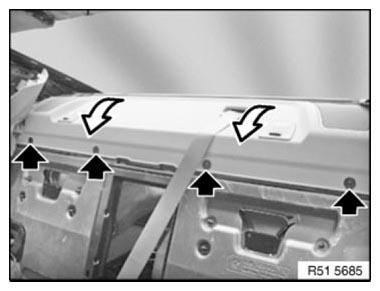

Release attachment sleeves and pull storage shelf forwards.
Unlock and disconnect underlying plug connections.
