64 11 216 Replacing blower for automatic rear air-conditioning system (F02 only)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CONTROLLER FOR REAR AIR CONDITIONING BLOWER

NOTE: For purposes of clarity, the automatic rear air-conditioning system is shown in the following operations with the component removed.

Pull condensation water drain hose (1) in direction of arrow out of gaiter.

Installation note:

Condensation water drain hose must be inserted up to marking in gaiter.

Unfasten plug connection (1) and disconnect.

Snap associated plug housing out of blower cover (3).

Release screws (4).

Remove blower cover (3).

Feed out motor supply lead incl. grommet (5).

Fig 1: Pulling Condensation Water Drain Hose In Direction

Courtesy of BMW OF NORTH AMERICA, INC.

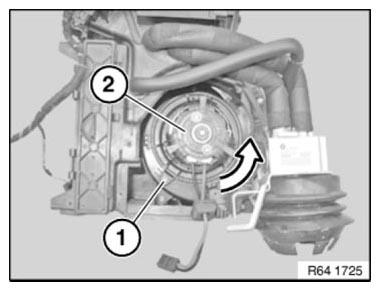

Release screw (1), snap out blower motor (2) in direction of arrow and remove in upward direction.

Fig 2: Removing Blower Motor And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
