64 11 229 Replacing controller for rear air conditioning blower (F02 only)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Clamp off NEGATIVE BATTERY CABLE
Up to 11/2010: Remove ALL LUGGAGE COMPARTMENT TRIM PANELS
From 11/2010: Remove LUGGAGE COMPARTMENT PARTITION WALL

NOTE: For purposes of clarity, picture shows component removed.

Release plug connections (1) and disconnect.

Unfasten screws (2).

Remove controller (3).

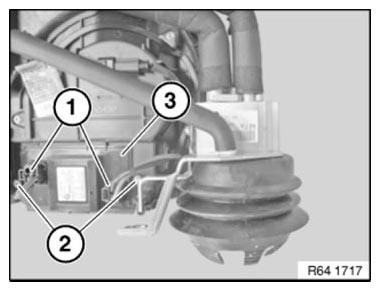

Fig 1: Identifying Controller, Plug Connections And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
