000150 Special tool cabinet AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To accommodate 5 special tool boards. Replaced by 1x 00 0 220  complete plus 1x 00 0 221  and 1x 00 0 224

Consisting of:

0490061

0490062

3 = 0490063

0490064

5 = 0490065

0490066

0490067

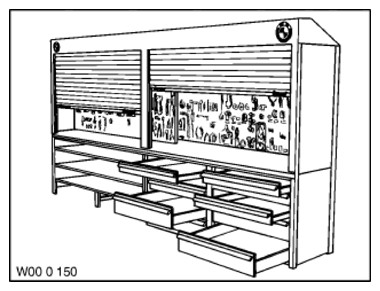

Fig 1: Identifying Special Tool Cabinet (000150)
G11168625Courtesy of BMW OF NORTH AMERICA, INC.
