11 61 050 Removing and installing intake plenum (PHEV)

WARNING: High-voltage system - danger to life

Observe SAFETY INFORMATION for handling electric vehicles.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD .
Remove ACOUSTIC COVER Removal:

Removal:

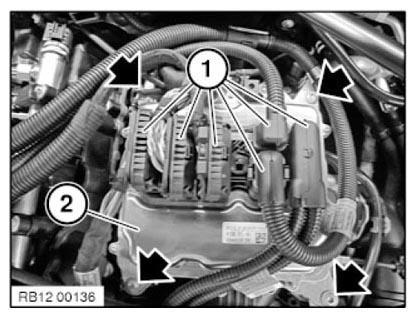

Unlock and pull off all connectors (1) from the DME control unit (2).

Loosen screws.

Tightening torque 12 14 1AZ .

Remove DME CONTROL UNIT .

Fig 1: Locating DME Control Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.

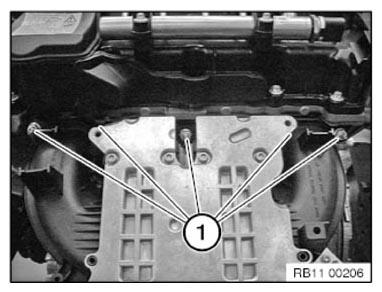

Press and hold lock (1) of tank ventilation line (2).

Pull off tank ventilation line (2).

Fig 2: Identifying Tank Ventilation Line And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

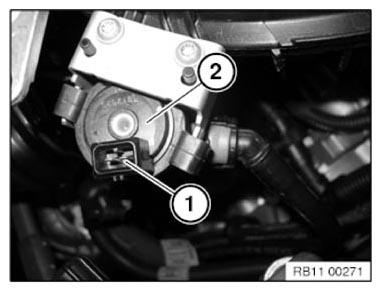

Detach plug connection (1) at tank vent valve (2).

Detach tank vent valve (2) from mounting.

Fig 3: Identifying Tank Vent Valve And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

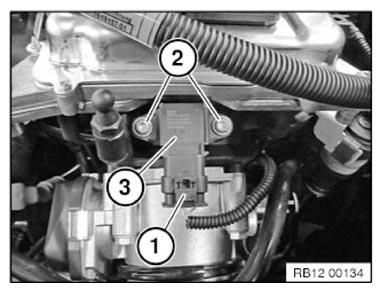

Disconnect plug connection (1) on throttle valve drive.

Fig 4: Identifying Plug Connection On Throttle Valve Drive

Courtesy of BMW OF NORTH AMERICA, INC.

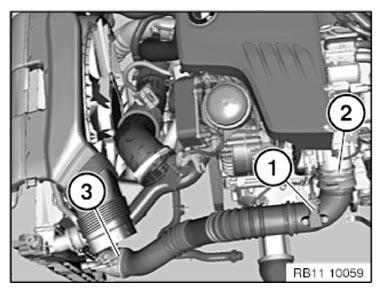

Unlock connector (1) and remove.

Fig 5: Identifying Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

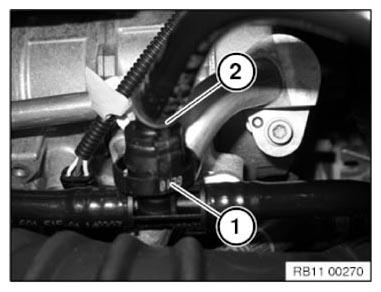

Disconnect plug connection (1).

Unlock snap fastener (2).

Press charge air duct down.

Fig 6: Identifying Snap Fastener And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release cable strap under intake plenum with a suitable tool.

Fig 7: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Check all profile seals, replace if necessary.

Position the intake plenum.

Tighten down nuts (1).

Tightening torque: 11 61 1AZ .

Fasten the cable strap under the intake plenum.

Fig 8: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Push the charge air line onto the throttle body.

The snap fastener (2) must snap audibly into place.

Plug in plug connection (1).

Fig 9: Identifying Snap Fastener And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Insert connector (1).

Fig 10: Identifying Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Plug in plug connection (1) on throttle valve drive.

Fig 11: Identifying Plug Connection On Throttle Valve Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Install the tank vent valve (2) on the bracket.

Insert plug connection (1) at tank vent valve (2).

Fig 12: Identifying Tank Vent Valve And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Install tank ventilation line (2).

Lock (1) of tank ventilation line (2) must engage audibly.

Fig 13: Identifying Tank Ventilation Line And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Install DME CONTROL UNIT .

Tighten bolts (see arrows).

Tightening torque 12 14 1AZ .

Insert all plug connectors (1) on DME control unit (2).

Fig 14: Locating DME Control Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.
