13 71... Removing acoustic cover (N20 hybrid drive)

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

Removal:

Release wiring harness along the arrows from the clamps.

Pull acoustic cover (1) up and out of the rubber mount and remove.

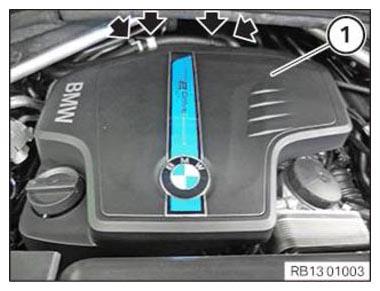

Fig 1: Identifying Acoustic Cover (N20 Hybrid Drive)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure rubber mount is correctly fitted on acoustic cover.

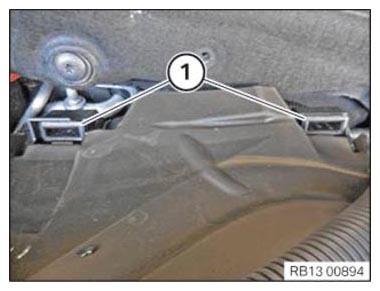

Fig 2: Identifying Acoustic Cover Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in acoustic cover (1) into the guides.

Fig 3: Identifying Acoustic Cover Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Attach acoustic cover (1) to the locating pins and engage.

Acoustic cover (1) must audibly snap into place.

Secure wiring harness along the arrows in the clamps.
