26 11 090 Removing and installing/replacing centering mount for propeller shaft

Special tools required:

• 2 450 247
• 11 2 030
• 00 5 500

Necessary preliminary work:

• Remove the PROPELLER SHAFT.

Removal:

Use the special tool 2 450 247  to remove the centering bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Join pin (1) and pin (2) of special tool 2 450 247  into the centering bearing of the propeller shaft.

Twist pin (1) 90° to pin (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Twist pin (2) between pin (1) and (3) of the special tool 2 450 247  into the centering bearing of the propeller shaft.

Twist pin (2) by 90°.

Courtesy of BMW OF NORTH AMERICA, INC.

Lock special tool 2 450 247  by twisting the sleeve (1).

Pins (2) are locked with sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install guide sleeve (1).

Screw spindle (3) with special tool 2 450 247  (2) and support on the guide sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate nut (1) in direction of arrow and pull out of the centering bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove grease from centering bore.

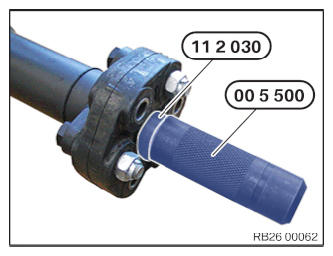

Drive centering into propeller shaft with special tools 11 2 030  and 00 5 500  (observe protrusion).

Attention!

Plastic centering mount must not be greased.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe protrusion A = 6 mm of centering (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the PROPELLER SHAFT.
