51 71 341 Remove & install/replace strut brace

Preliminary work: needed:

• Remove WINDSHIELD PANEL COVER  (front section)

Removal:

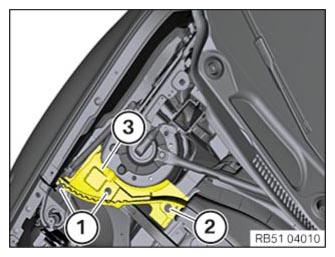

Release expanding rivet (1).

Remove screw (2).

Remove cover (3) on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

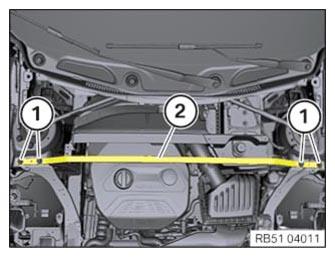

Unscrew the screws (1).

Remove suspension cross-brace (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install strut brace (2).

Tighten down screws (1).

Tightening torque 51 61 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cover (3) on left and right.

Tighten screw (2).

Tightening torque 51 71 10AZ .

Mount expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install WINDSHIELD PANEL COVER  (front section)
