Install the heat exchanger for the automatic transmission
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.
- Insert and install the heat exchanger of the automatic transmission (5).
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATIONS
| Heat exchanger, automatic transmission to crankcase | |
| M6 | 8 Nm |
- Tighten down screw (4).
TIGHTENING TORQUE SPECIFICATIONS
| Heat exchanger, automatic transmission to crankcase | |
| M6 | 8 Nm |
- Connect and lock transmission oil lines (1).
The transmission oil lines (1) must engage audibly.
- Connect and lock coolant line (2).
The coolant line (2) must audibly engage.
- Insert and install protective plate (2).
- Tighten the nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Protective plate, fuel lines to body | |
| 3.5 Nm | |
- Connect and lock the clamp (1).
The clamp (1) must engage audibly.
- Feed in and install the cable clip (2).
The locks (1) must engage audibly.
- Insert and install the holder (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Holder to automatic transmission | |
| M6X20 | 8 Nm |

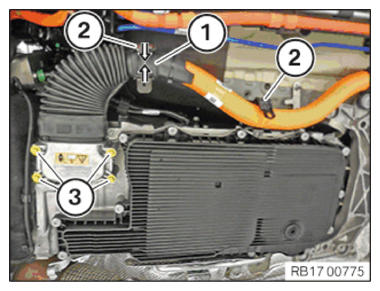

- Unlock and remove cable strap (2).
- Thread out high-voltage cable (1).
- Thread in and install high-voltage cable (1).
- Apply the bolts (arrows) crosswise until the high-voltage connector is flush.
- Position high-voltage cable (1) on holders (2) (arrows).
- Tighten screws (3) crosswise.
TIGHTENING TORQUE SPECIFICATIONS
| High-voltage cable to automatic transmission | ||
| M6X25 Tighten screws in crosswise sequence. |
Joining torque | 3 Nm |
| Tightening torque | 8 Nm | |
- Insert and install the holder (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| High-voltage cable to holder | |
| M6x12/M6X14 | 8 Nm |
- Feed in and install connecting rod (1).
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Connecting rod on front axle support | |
| Screw | 3 Nm |
- Connect and lock coolant line (1).
The coolant line (1) must audibly engage.
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING BOTH COOLANT EXPANSION TANKS .
- Refer to INSTALLING CONTROL UNIT HOLDER .
- Refer to INSTALLING BATTERY HOUSING (ENGINE COMPARTMENT) .
- Refer to INSTALLING AUXILIARY BATTERY (ENGINE COMPARTMENT) .
- Refer to INSTALLING CORROSION PROTECTION COVER .
- Refer to INSTALLING SOUND INSULATION AT THE CENTER OF THE BULKHEAD UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SPRING STRUT TOWER
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE DESIGN COVER .
- Refer to CONNECT THE COOLANT LINE TO THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECT THE COOLANT LINE TO THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING NEGATIVE BATTERY CABLE (ENGINE COMPARTMENT) .
- Refer to CONNECTING THE NEGATIVE BATTERY CABLE .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to FILLING THE LOW-TEMPERATURE COOLANT CIRCUIT WITH THE VACUUM FILLER DEVICE .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE .
- Refer to BLEEDING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to BLEED THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to CHECKING THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE UNDERBODY PANELLING ON THE SIDES .
