Installing starter motor
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
- Insert and install the starter motor (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Starter motor to engine | ||
|---|---|---|
| M8X60 | tightening torque | 19 Nm |
- Insert and install the acoustic cover of the oil sump (3).
- Secure clamps (1).
- Connect and lock the clamp (2).
The clamp (2) must engage audibly.
- Insert and install cable (3).
- Connect and lock the clamp (2).
- Connect and lock the clamp (1).
All clamps must engage audibly.
- Insert and install cable (1).
- Connect and lock the clamps (arrows).
All clamps must engage audibly.
- Connect cable (5) to the starter motor.
- Tighten nut (4).
TIGHTENING TORQUE SPECIFICATIONS
| Terminal 50 to starter motor | ||
|---|---|---|
| M6 | Tightening torque | 7 Nm |
- Insert and install the positive battery cable at the starter motor.
- Install the anti-twist lock (1) of the positive battery cable to the starter motor up to the limit position (2).
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATIONS
| Battery positive lead to starter | ||
|---|---|---|
| M8 | Tightening torque | 13.5 Nm |

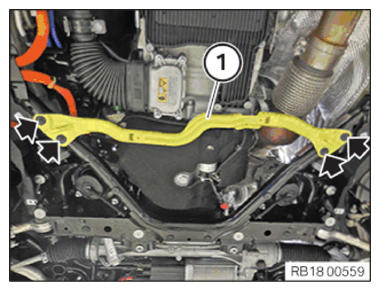

- Install connecting rod (1).
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Connecting rod on front axle support | |
|---|---|
| Screw | 3 Nm |
Follow-up work
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to CONNECTING NEGATIVE BATTERY CABLE (ENGINE COMPARTMENT) .
- Refer to CONNECTING THE NEGATIVE BATTERY CABLE .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to ONLY DURING STARTER MOTOR REPLACEMENT FOR VEHICLES WITH AUTOMATIC ENGINE START-STOP FUNCTION (MSA) .
