28 60 020 Replacing wiring harness (GS7D36SG)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release screw (1).

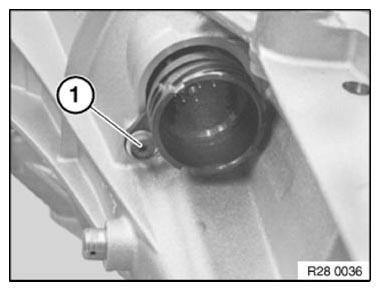

Fig 1: Identifying Clutch Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 28 10 6AZ .

Release aluminium screw (6).

Tightening torque: 28 10 11AZ .

Installation note:

Replace aluminium screw.

Release combination sensor (2) from housing.

Disconnect connector (3).

Removing wiring harness (4) with earth terminal (5) from housing.

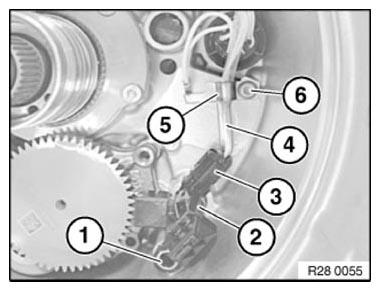

Fig 2: Identifying Combination Sensor Connector, Bracket And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Guide earth terminal (5) carefully through transmission connector bore.

Risk of damage to sealing surface.

IMPORTANT: To disconnect the combination sensor connector:

Press lock together in area (1) and simultaneously detach connector.

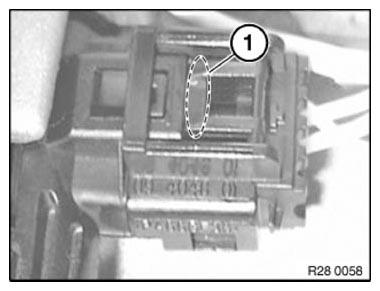

Fig 3: Identifying Combination Sensor Connector Area

Courtesy of BMW OF NORTH AMERICA, INC.
