51 46 050 Removing and installing/replacing top trim on rear apron

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT LUGGAGE COMPARTMENT FLOOR TRIM
Remove LOADING SILL END COVER

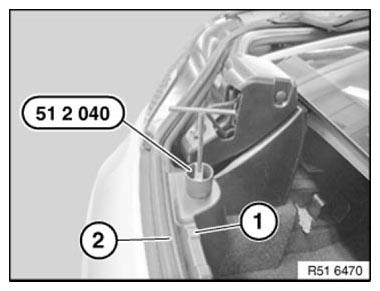

Release screws with special tool 51 2 040 on rear apron trim (1).

Partially lift off seal (2).

Fig 1: Removing Screws Using Special Tool (51 2 040)

Courtesy of BMW OF NORTH AMERICA, INC.

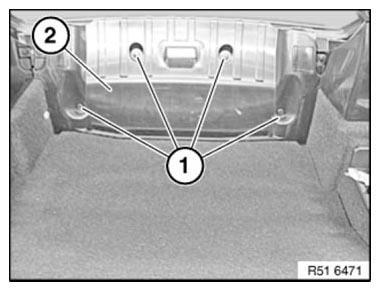

Lever out expansion rivets (1).

Remove panel for rear apron trim (2).

Fig 2: Identifying Rear Apron Trim With Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

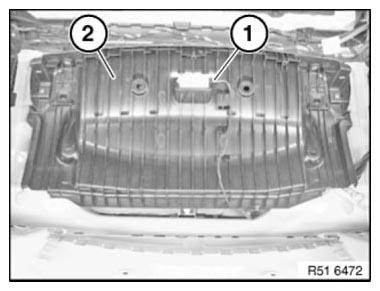

Unclip lights (1) on rear apron trim (2).

Remove rear apron trim (2).

Fig 3: Identifying Lights On Rear Apron Trim

Courtesy of BMW OF NORTH AMERICA, INC.
