51 47 217 Removing and installing/replacing loading sill end cover (rear light) on left or right

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL
Move Convertible top into half-opened position
Support Convertible top compartment lid with suitable tool

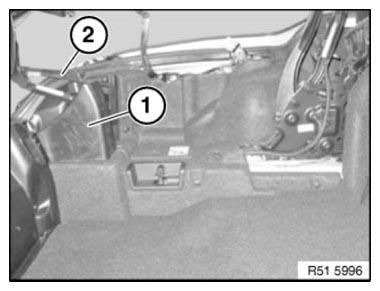

Remove luggage compartment cover (1) from roof fastener mechanism (2).

Fig 1: Identifying Luggage Compartment Cover Of Roof Fastener Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

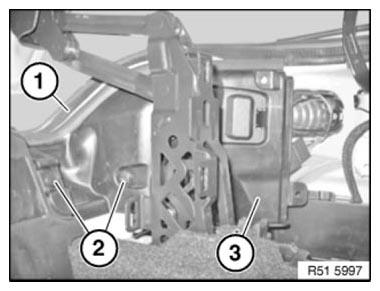

Partially lift off seal (1).

Lift out expanding rivets (2).

Remove end cover (3).

Fig 2: Identifying Cover With Seal And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
