51 43 031 Removing and installing/replacing cover on rear left or right rollover bar

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

Necessary preliminary tasks

Remove COVER ON FRONT ROLLOVER BAR

Release screws (1) and remove windbreak mount.

Remove rear cover (2) in direction of arrow from rollover bar.

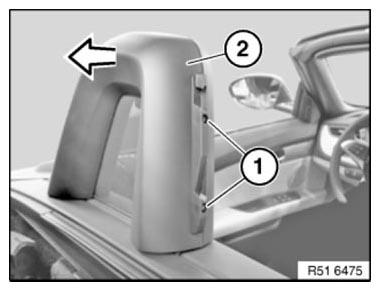

Fig 1: Removing Rear Cover From Rollover Bar

Courtesy of BMW OF NORTH AMERICA, INC.
