51 43 030 Removing and installing/replacing cover on front left or right rollover bar

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.
For purposes of clarity, operations show component removed.

Necessary preliminary tasks

Partially open folding roof
If necessary, remove wind deflector

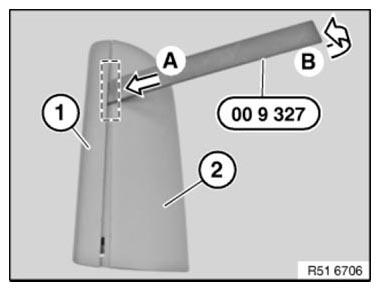

Insert special tool 00 9 327 in marked area from an angle at rear in direction of arrow A between front (1) and rear covers (2).

By rotating special tool in direction of arrow B, lever cover (1) out of retaining nipple of rear cover (2).

Fig 1: Inserting Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

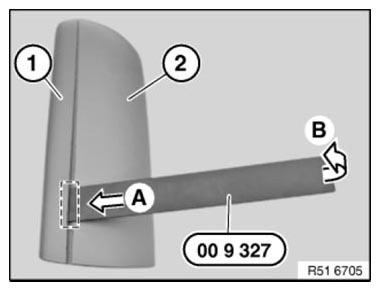

Repeat procedure, as described above.

Fig 2: Inserting Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Now carefully lever front cover (2) out of remaining retaining nipples by hand and remove cover (2).

Installation:

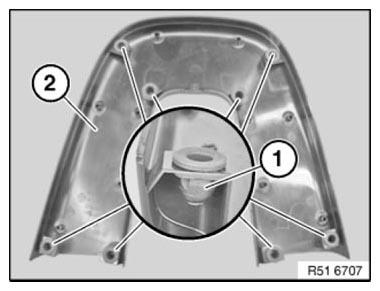

Replace missing or damages fixing grommets (1).

Fig 3: Identifying Cover With Fixing Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

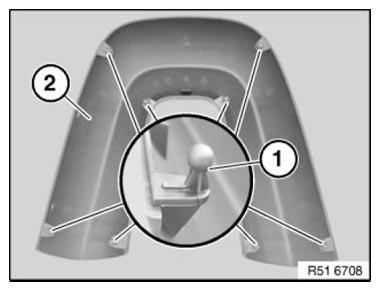

Retaining nipples (1) on rear cover (2) must not be damaged. If necessary, replace rear cover (2).

Fig 4: Identifying Retaining Nipples On Rear Cover

Courtesy of BMW OF NORTH AMERICA, INC.
